Solar Panels Portable Solar Panel 440w JET Buying Solar Panels for Your Home

品牌 : Bluesun

型号 : BSM440M10-54NHB

原产地 : Anhui, China

电池片尺寸 : 108 (6*18)

类型 : 半电池, 全黑色, N型, 拓普康, 高效率N型Topcon

尺寸 : 1722*1134 * 30mm

组件效率 : 22.5%

颜色 : 全黑

产品名称 : 喷气机

电缆长度 : 300mm或1200mm

前玻璃 : 3.2mm

框架 : 阳极氧化铝合金

旁路二极管的编号 : 3

最大串联保险丝 : 25A

接线盒 : IP68

安全等级 : 我

保修期 : 30年

Contact Now

Products Description

Solar Panels Portable Solar Panel 440w JET Buying Solar Panels for Your Home

SPECIFICATIONS
Module Type	BSM430M10-54NHB			BSM435M10-54NHB			BSM440M10-54NHB		BSM445M10-54NHB
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power (Pmax/W)	430	321	435	325	440	329	445	333
Operating Voltage (Vmp/V)	33.16	30.26	33.36	30.44	33.56	30.62	33.76	30.81
Operating Current (Imp/A)	12.97	10.62	13.05	10.68	13.12	10.75	13.19	10.82
Open-Circuit Voltage (Voc/V)	39.43	37.02	39.63	37.21	39.83	37.43	40.03	37.58
Short-Circuit Current (lsc/A)	14	11.31	14.08	11.37	14.15	11.43	14.23	11.49
Module Efficiency (%)	22			22.3			22.5		22.8
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 ; NMOT: Iradiance at 800W/m², Ambient Temperatue 20°C, Air Mass AM1.5, Wind Speed 1m/s

New Technology

A new generation of PV Module based on JET technology, will meet the diverse needs of customers. The efficiency of JET cells
exceeds 25%, up to 10% power generation increased than normal modules.

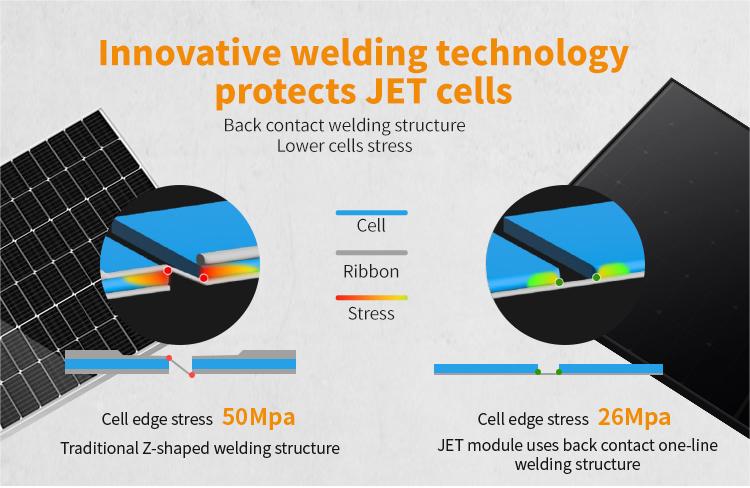

Innovative back contact one-line welding technology stabilize the current transmission, protects JET cells, lower cells stress.

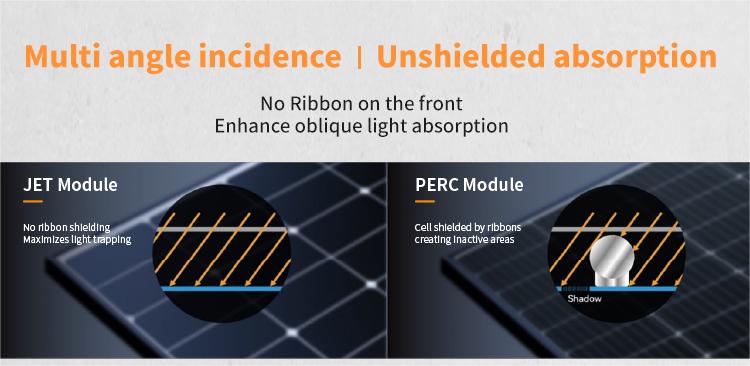

Multi-layer anti-reflection film and absence of front grid increase light absorption. No ribbon shielding on the front, improve
light absorption by about 2.27%.

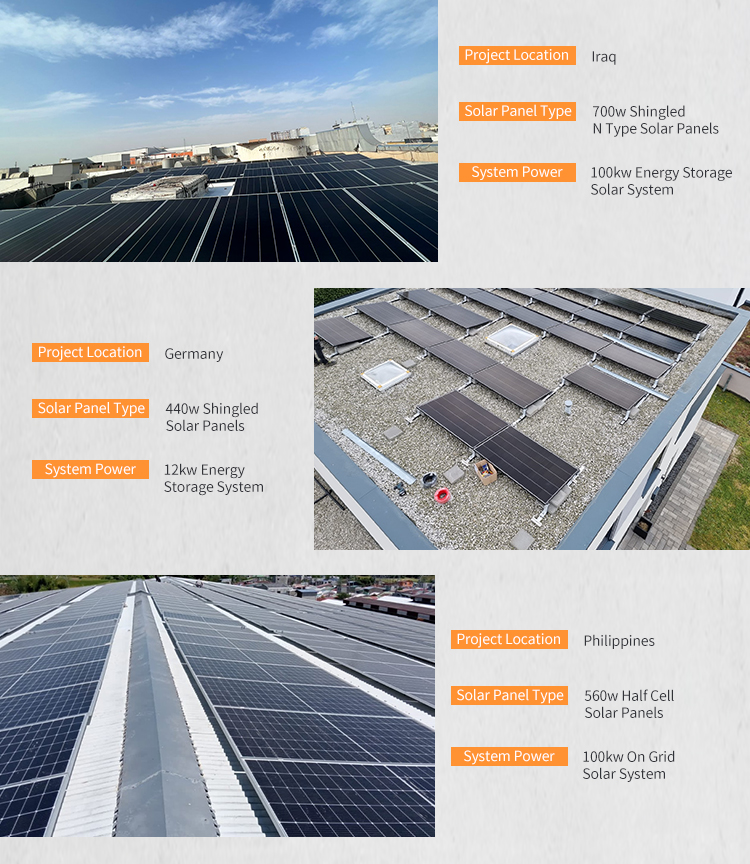

Projects

Packing & Delivery

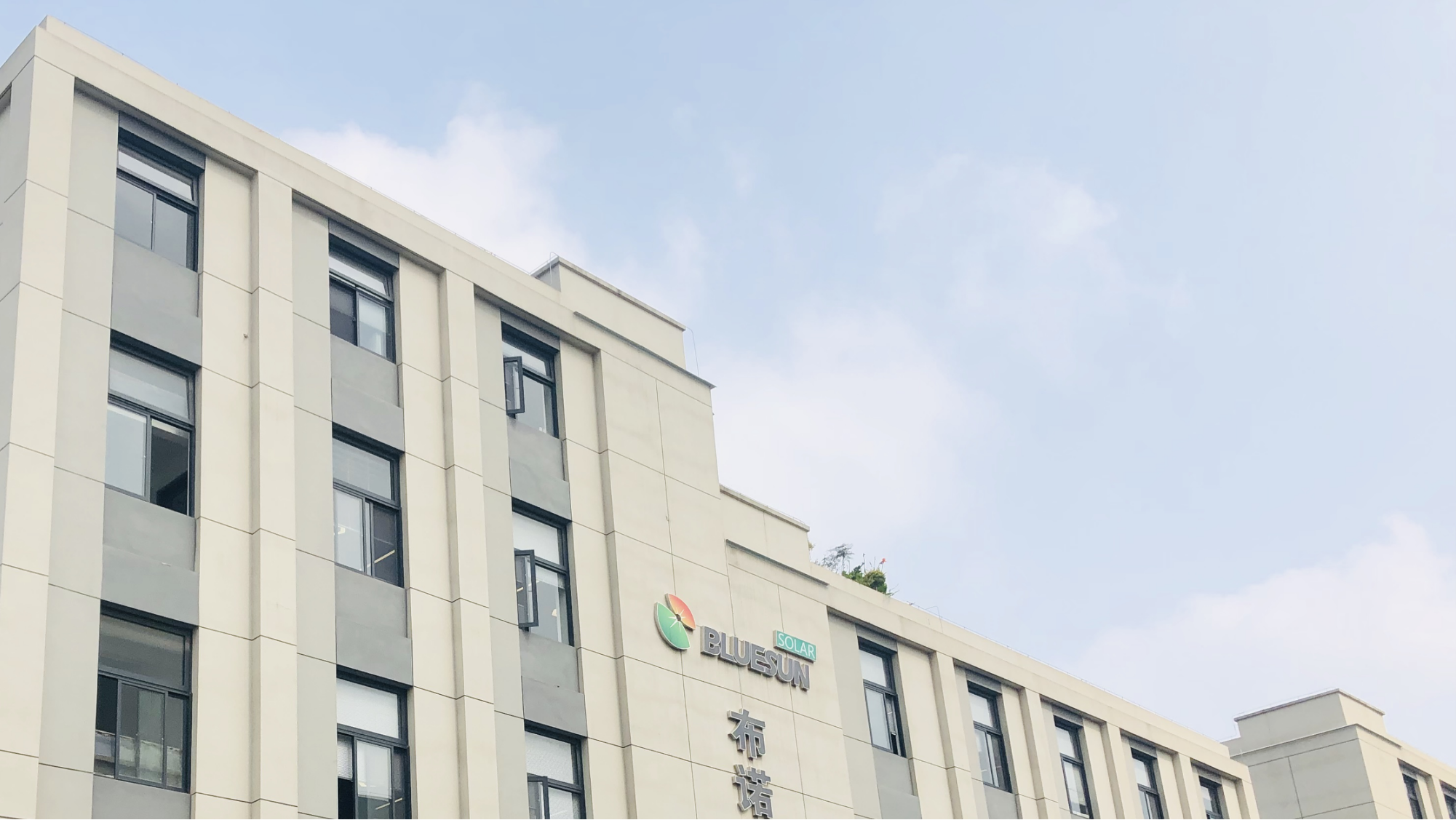

Our Company

Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.

Our Exhibitions

2023 INTER SOLAR NORTH AMERICA

2023 SOLARTECH INDONESIA

SOLAR SOLUTIONS INT Amsterdam

Payment

Payment Term

T/T

EXW

30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L

CIF

L/C

L/C amount above 50,000 usd, we can accept L/C at sight

West Union

Amount lower than 5000usd

West Union

Delivery Time

7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Solar Panels Portable Solar Panel 440w JET Buying Solar Panels for Your Home Images
