Bluesun HJT 500w 510w 520w 530w Shingled Sun Power Solar Panel Bificial in Good Price

Name: Bluesun HJT 500w 510w 520w 530w Shingled Sun Power Solar Panel Bificial in Good Price
Brand: Bluesun
Price: 1 USD

China Bluesun HJT 500w 510w 520w 530w Shingled Sun Power Solar Panel Bificial in Good Price factory

Brand Name : Bluesun

Model Number : BSM500PM5-72SB

Place of Origin : Anhui, China

Cell size : 166mmx166mm

Type : PERC, All Black, HJT, Overlap, Shingled Solar Panel

Panel Dimensions : 2056*1140*35mm

Panel Efficiency : 21.3%

Certificate : ISO CE TUV

Solar cell : Mono Perc 166mm x 166mm

Junction Box : IP67

Connector : PV Compatible Connector

Warranty : 15 Years Product and 25 Years Linear Power, 25 Years

Frame : Anodized Aluminium

Withstanding Hail : Maximum diameter of 25 mm with impact speed of 23 ms-1

OEM Order : Acceptable

Front Cover : High Transmission Tempered Glass

Contact Now

Products Description

Bluesun HJT 500w 510w 520w 530w Shingled Sun Power Solar Panel Bificial in Good Price

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Paramenters

Electrical Characteristics
Model	BSM470PM5 -72SB	BSM475PM5 -72SB	BSM480PM5 -72SB	BSM485PM5 -72SB	BSM490PM5 -72SB	BSM500PM5 -72SB
Max Power(Pmax) [W]	470	475	480	485	490	500
Open Circuit Voltage(Voc) [V]	46.4	46.5	46.6	46.6	46.7	46.8
Short Circuit Current(lsc) [A]	13.04	13.10	13.16	13.22	13.28	13.40
Max Power Voltage(Vmp) [V]	38.6	38.7	38.8	38.8	38.9	39.0
Max Power Current(lmp) [A]	12.18	12.27	12.37	12.50	12.60	12.82
Module Efficiency [%]	20.1	20.3	20.5	20.7	20.9	21.3
Power Tolerance	0-5W
Max System Voltage	1000V/1500V/DC(IEC)
Max Series Fuse Rating	20A
Operating Temperature	-40 °C to + 85°C
STC	Irradiance 1000W/m2, cell temperature 25 °C , AM1.5

Advantages Of Shingled Module

Advantages

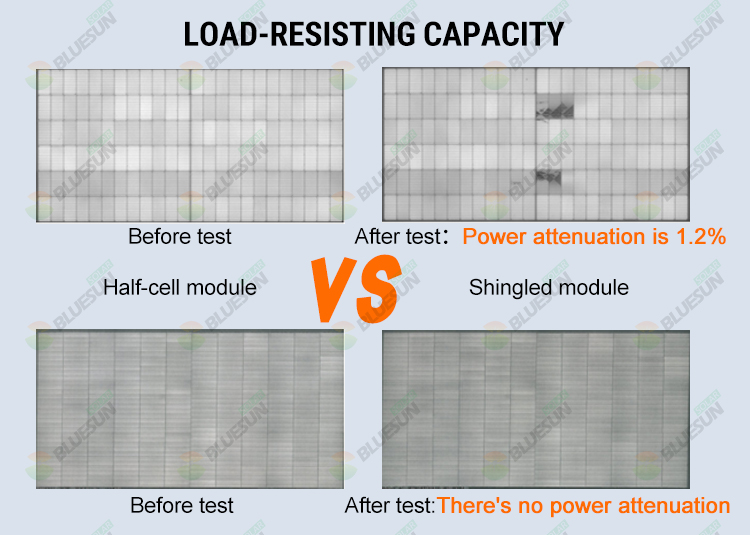

*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).

*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.

Certifications

Our Company

Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!

Global Exhibition

Projects
