Cigs Solar Panel 330w Pv Module 340wp 350watts Hot Sale Best Price for Solar Home System

品牌 : Solar home

型号 : BSM330P-72

原产地 : Anhui, China

电池片尺寸 : 156mmx156mm

类型 : 打击乐, 标准太阳能电池板

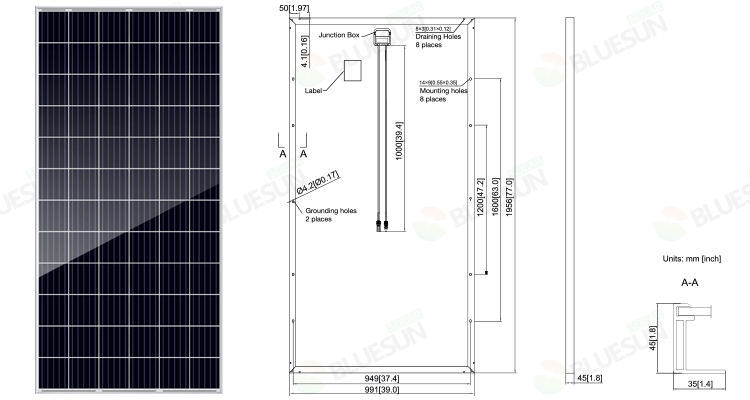

尺寸 : 1956*992 * 40mm

组件效率 : 18%

产品名称 : cigs太阳能电池板330w

太阳能电池 : 聚156x156mm

证书 : CE TUV ETL

保修 : 25年输出功率保证

框架 : 阳极氧化铝合金

接线盒 : IP65额定

颜色 : 蓝色广告黑色

OEM订单 : 可接受

前盖 : 3.2mm高传动，低铁

保修期 : 25年

Contact Now

Product Description

Cigs Solar Panel 330w Pv Module 340wp 350watts Hot Sale Best Price for Solar Home System

Moduel	BSM325P-72	BSM330P-72	BSM335P-72	BSM340P-72	BSM350P-72
Rated Maximum Power at STC	325W	330W	335W	340W	350W
Open CircuitVoltage(Voc/V)	46.0	46.1	46.3	46.5	46.9
Maximum Power Voltage(Vmp/V)	37.17	37.6	37.9	38.2	38.5
Short Circuit Current(Isc/A)	9.05	9.28	9.36	9.45	9.6
Maximum Power Current(Imp/A)	8.74	8.78	8.84	8.9	9.09
Module Efficiency(%)	16.77	17.00	17.3	17.5	18.0
Power Tolerance	-0~+5W
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Detailed

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Packing & Delivery

By Sea	Delivery from Shanghai or Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	By TNT/DHL

Our Company

History .

From 1983, first for silicon business , 2004 beginning produce solar cell ,solar panel . capacity 50MW per year

Capacity .

Full automatic production line ,all machine import from Germany . now capacity 500MW per year

International .

400MW export to more than 80 counties , EPC company in Germany ,Italy ,USA and Canada ,

World Partner.

More than 20 famous international famous company partner in the world , solar city,Solar world ,Q-Cell ,Tesla ...

Office&Warehouse.

more than 4 office in the world ,Germany ,USA ,Brasil ,Canada,Ukraine
Los Angeles& Rotterdam warehouse

Service .

100 international sales, English,Spain,France Language . we support all time all language service.

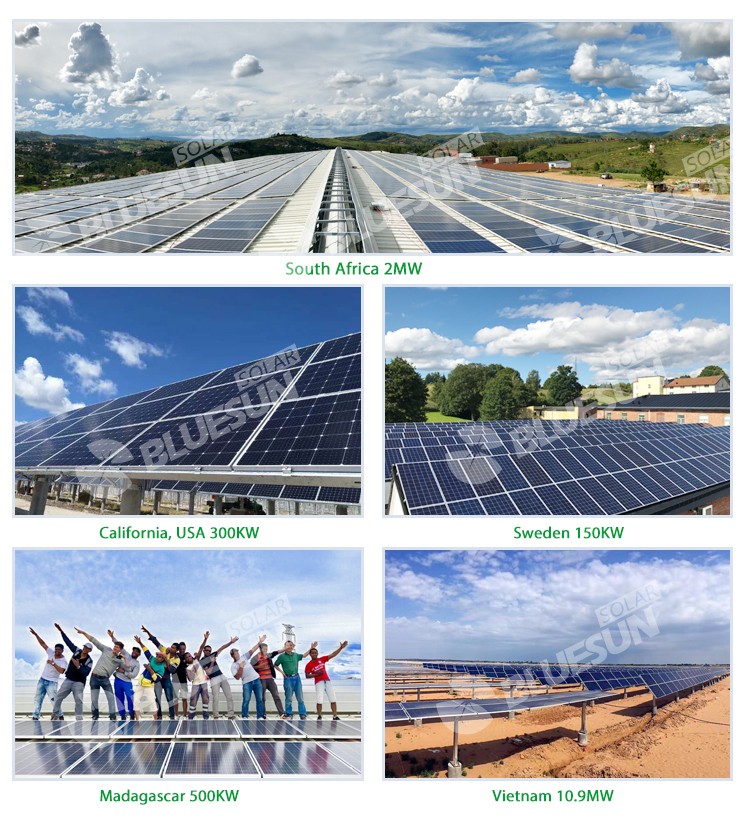

Project
