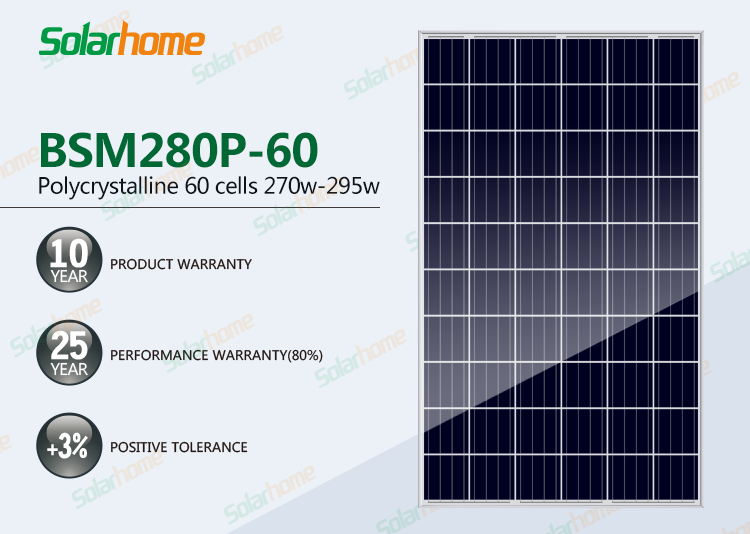

Bluesun Solar Modules and Panels Stock Solar Panel 270W 280w 290w for Home Kits 5BB 60cells ETL TUV Certificates

Name: Bluesun Solar Modules and Panels Stock Solar Panel 270W 280w 290w for Home Kits 5BB 60cells ETL TUV Certificates
Brand: Solar home
Price: 1 USD

China Bluesun Solar Modules and Panels Stock Solar Panel 270W 280w 290w for Home Kits 5BB 60cells ETL TUV Certificates factory

Brand Name : Solar home

Model Number : BSM280P-60

Place of Origin : Anhui, China

Cell size : 156.75mmx156.75mm

Type : PERC, Half Cell, byd solar panel

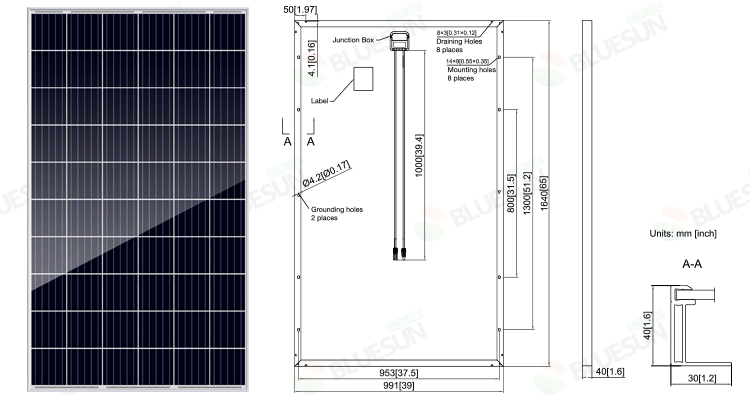

Panel Dimensions : 1640*992*40mm

Panel Efficiency : 18%

Certificate : TUV CE CEC ETL

Solar cell : Poly 156x156mm

Junction Box : IP65 Rated

Warranty : 25 Years Output Power Guarantee

Frame : Anodized Aluminium Alloy

Color : Blue Ad Black

OEM Order : Acceptable

Front Cover : 3.2mm High transmission, low Iron

Contact Now

Product Description

Bluesun Solar Modules and Panels Stock Solar Panel 270W 280w 290w for Home Kits 5BB 60cells ETL TUV Certificates

Moduel	BSM270P-60	BSM275P-60	BSM280P-60	BSM285P-60	BSM290P-60
Rated Maximum Power at STC	270W	275W	280W	285W	290W
Open CircuitVoltage(Voc/V)	38.3	38.46	38.85	38.95	40.03
Maximum Power Voltage(Vmp/V)	31.21	31.54	31.88	32.19	32.43
Short Circuit Current(Isc/A)	9.16	9.22	9.33	9.43	9.54
Maximum Power Current(Imp/A)	8.65	8.72	8.78	8.85	8.92
Module Efficiency(%)	16.51	16.82	17.12	17.55	17.82
Power Tolerance	-0~+5W
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Detailed

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Packing & Delivery

By Sea	Delivery from Shanghai or Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	By TNT/DHL

Our Company

History .

From 1983, first for silicon business , 2004 beginning produce solar cell ,solar panel . capacity 50MW per year

Capacity .

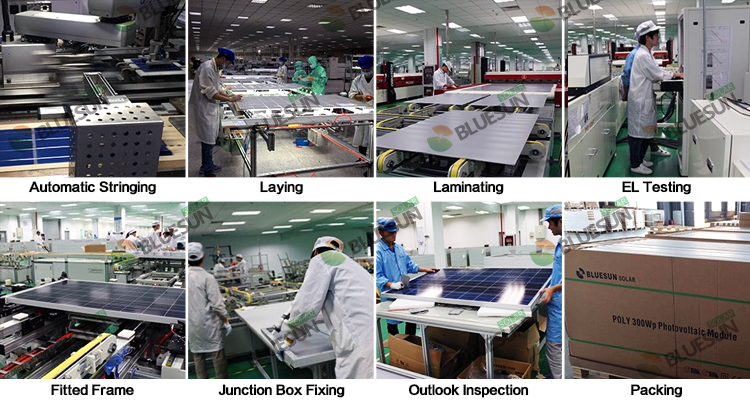

Full automatic production line ,all machine import from Germany . now capacity 500MW per year

International .

400MW export to more than 80 counties , EPC company in Germany ,Italy ,USA and Canada ,

World Partner.

More than 20 famous international famous company partner in the world , solar city,Solar world ,Q-Cell ,Tesla ...

Office&Warehouse.

more than 4 office in the world ,Germany ,USA ,Brasil ,Canada,Ukraine
Los Angeles& Rotterdam warehouse

Service .

100 international sales, English,Spain,France Language . we support all time all language service.

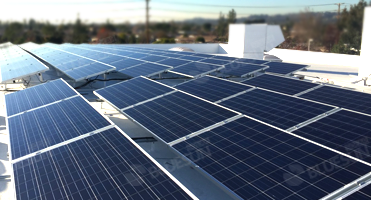

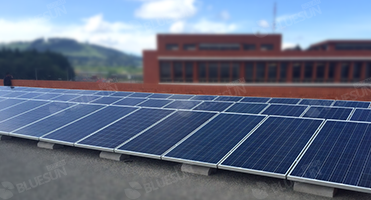

Project

250KW on grid solar project in Malta,EU

60KW on grid solar project in Guatemala,South America

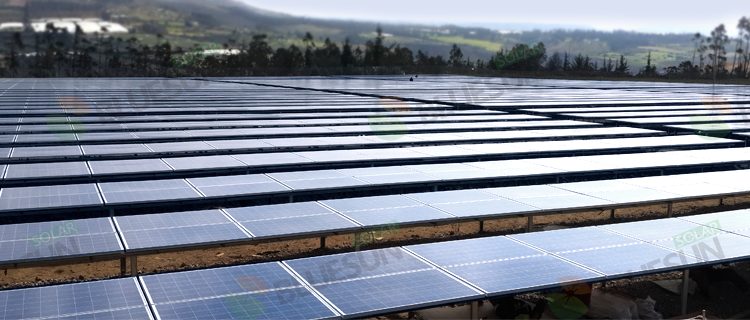

1.2MW solar power plant in Ecuador,South America

144KW on grid solar project in California,USA

150KW on grid solar project in Japan
